PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold

1
MOQ
USD
Prijs
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold
Kenmerken Galerij Productomschrijving Beoordelingen & Recensies Verzoek om een Citaat
Kenmerken
Specificaties
Extrudermodel: Eenvoudige schroef-extrudering
De maat van het profiel: Max. 2140 mm
Extruder met enkele schroef: SJ 120/35
Grondstof: PP-pellets
Snijder: ZAAGsnijder
Spanning: 380V 50HZ 3Fase ((Aangepast)
omvormer: ABB
Sollicitatie: Bouw
Garantie: 12 maanden na installatie op lokale plaats
kleur: afhankelijk van de vraag van de klant
Verpakkingsmethode: Film of houten dozen
Markeren:

PVC profile extrusion machine with mold

,

L shape plastic extrusion production line

,

ABS PP PE profile making machine
Basis informatie
Plaats van herkomst: Jiangsu Zhangjiagang
Merknaam: LB
Certificering: CE,ISO
Modelnummer: LB-95/33
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Film of houten dozen
Levertijd: 45 dagen
Levering vermogen: 15 sets per maand
Productomschrijving
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity
  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components
Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 0

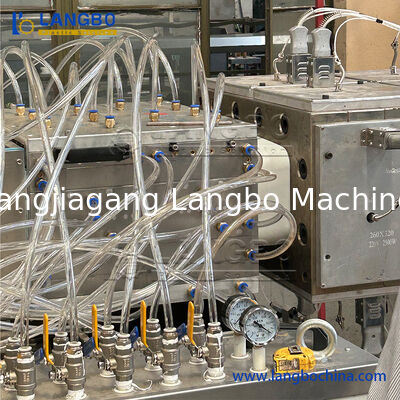

Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 1

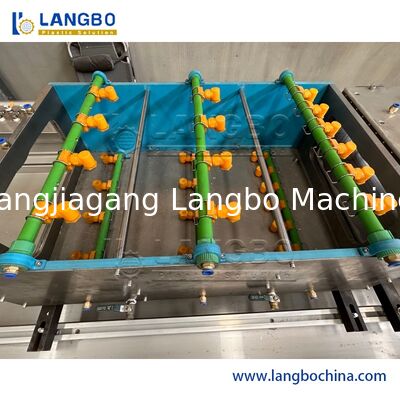

Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 2

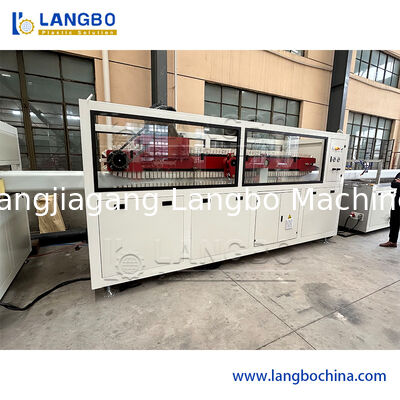

Haul-off System
Provides uniform force distribution across all caterpillars with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 3

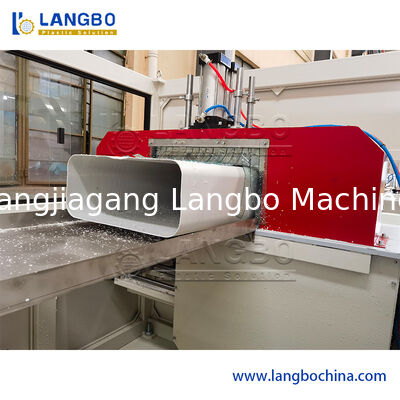

Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 4 PVC PP PE ABS L Shape Plastic Profile Making Extrusion Machine Production Line with Different Shape Mold 5
