Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Verpakking Details: Houten doos

Materiaal: POM, PC, PMMA

Schroef: 65 mm

LD: 33:1

Motor: Siemens

Omvormer: Abb

Schroefontwerp: Enkele schroef

Schroefkoeling: Fan

Verwarming: Omron Elektrisch

Spanning: 380V 50HZ 3Fase ((Aangepast)

Automatisch cijfer: Volautomatisch

After-sales service verstrekt: Ingenieurs beschikbaar voor servicemachines in het buitenland, online ondersteuning, video -technisc

Garantie: 1 jaar

Kleur: Aangepast

Controle: PLC+touchscreen

Basis informatie

Plaats van herkomst: Zhangjiagang

Merknaam: LB

Certificering: CE / ISO

Modelnummer: Lb

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: Normaal pakket

Levertijd: 45 werkdagen

Betalingscondities: L/c, t/t,

Levering vermogen: 15 sets per maand

Galerij

Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line

Productomschrijving

Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line

Application:
Widely used in industrial machinery parts ,electronics ,toys ,footwear and other industries

Technical parameter:

S.N	Description	Qty
1	SJZ80/34 Single- screw extruder: one set Screw dia: 80mm Screw L/D:34:1 Screw type: special screw Screw diameter: φ80mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV; Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV; Main motor power: 110KW Heater zone: 8 zones Hopper dyer: one set Automatic feeding system: one set	1 set
2	POM Extrusion mould: Mould body: 1 set Sizing sleeve: copper φ152mm, φ177mm Wall thickness: 12mm	1 set
3	AFP-250 Vacuum Water Cooling Tank effective vacuum length:6000mm center height:1050mm±50mm up and down movement distance±50mm left and right movement distance±50mm vacuum pump power:5.5KwX2 water pump power:4.0KwX2 forward and backward movement distance 600mm forward and backward motor power:1.5KW Equipped with water level and waer temperature automatic monitoring system Water tank body adopts stainless steel	1 set
4	AFP-250 Water Spraying Cooling Tank effective vacuum length:6000mm water pump power:4.0KwX1 Water tank body adopts stainless steel	1 set
5	AFP-250 Four Pedrails Haul-off Machine main motor power:4kw*2 (Inverter control for speed) suitable pipe rangeФ50-250mm the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw the upper pedrail is controlled by pneumatic for up & down lift	1 set
6	AFP-250 Dustless Saw cutting machine Cutting blade: knife cutting Rotary motor power:2.2kW suitable pipe range:Ф50-250mm Cutting knife is controlled by pneumatic	1 set

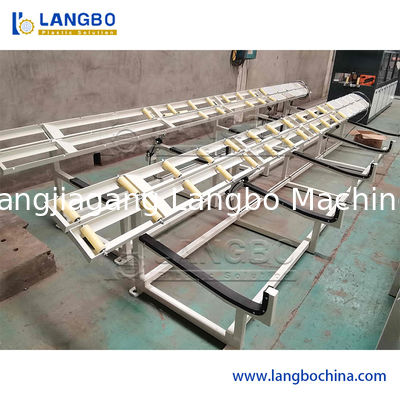

7	AFP-250 Stacking unit Effective length:3000mm	1 set

Our Advantages:

1.With special design to the screw, makes the raw materials reach the good plasticizing and mixin effect

2.Bright and uniform finished product with automatic temperature control

3.Frequency inverter control

4.High efficiency and energy saving

5.Automatic fixed-length cutting, easy to operator

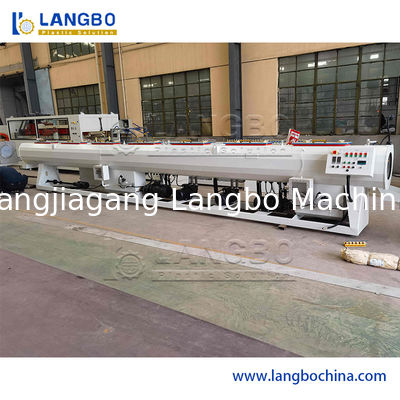

Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line 1

Our competitive advantages:

1.LangBo is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds,

integrating scientific research, development, manufacturing, sales and service.

2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with

advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and

constantly blaze new trails to meet the needs of customers. Products sell well all over the country and exported to many overseas countries and

regions won the trust of all parties, the product is in the same industry-leading position in the country.

label:

Contactpersoon :	Mr. YIN
Tel. :	+86 139 2198 6345/ +86 139 2197 4941
Fax :	+86-512-58578311
