PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs

1 Instellen
MOQ
Negotiable（USD EUR）
Prijs
PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs
Kenmerken Galerij Productomschrijving Beoordelingen & Recensies Verzoek om een Citaat
Kenmerken
Specificaties
Verpakkingsmethode: Houten en filmverpakkingen
Spanning: 380V of aangepast
MachineLength: Ongeveer 15 meter
Afmetingen: 16-300 mm
Capaciteit: 250-300 kg/h
Afstand-off-snelheid: 0-20 m/min instelbaar
Markeringslijn: Extruder met enkele schroef
Productnaam: ppr de lijn van de pijpuitdrijving
Pijpdiameterbereik: 16 mm - 110 mm
elektrische componenten: of Schnider
Basis informatie
Plaats van herkomst: Zhangjiagang
Merknaam: LB
Certificering: CE/ISO
Modelnummer: LB-63
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Normaal pakket
Levertijd: 45 Woking Days
Betalingscondities: L/C, T/T
Levering vermogen: 15 sets per maand
Productomschrijving
PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs
Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes

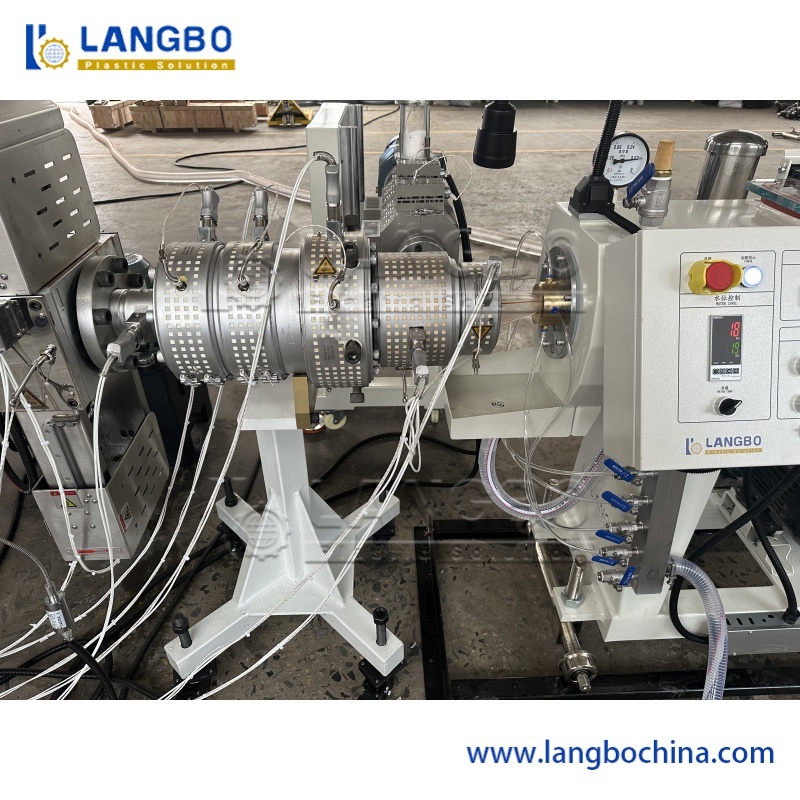

  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter

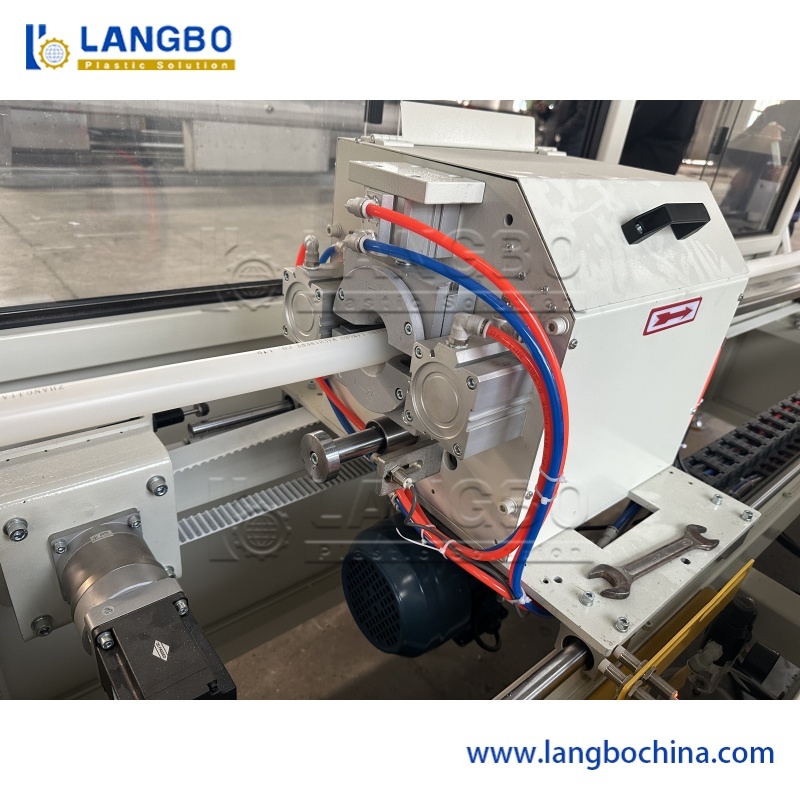

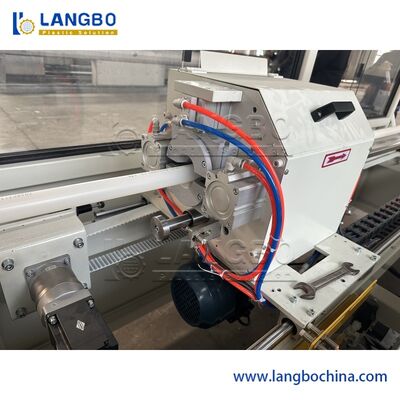

  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 0


PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 1

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 2PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 3
